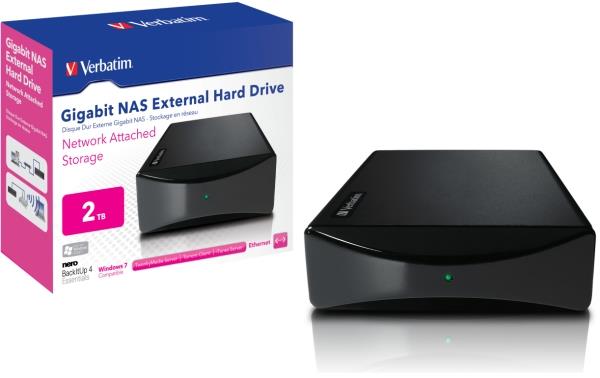

Verbatim Gigabit NAS
A gemini-based NAS from Verbatim.
UART Access

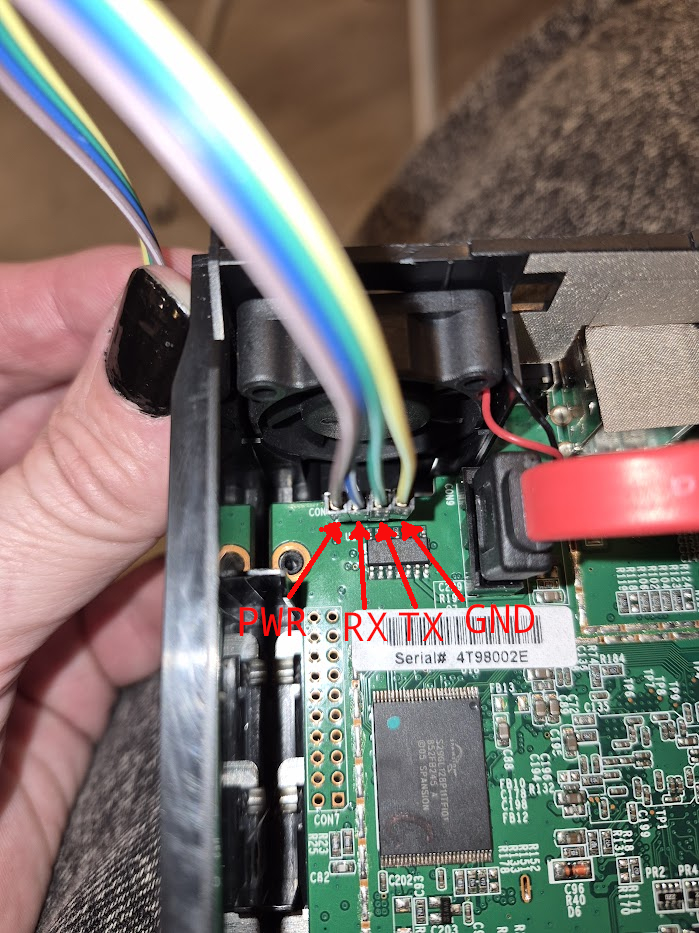

UART location inside the Gigabit NAS
My approach is to first solder in a proper pin rail, then put wires on top of the pin rail, but it's just as fine to solder wires directly onto the holes in the board.
See the picture for pin layout.
I have noticed that connecting the PWR pin to the UART converter is not optional input (TX) to the device will not work or the device will not even power on unless you connect the power.
The device uses 19200N8 serial settings.
Device Info
Bootlog with no harddrive attached
Kernel TODO
- Figure out all GPIOs and pins
- Add a proper device tree for the device
OpenWrt TODO
Add to OpenWrt. Fix installation procedure and flash layout.
